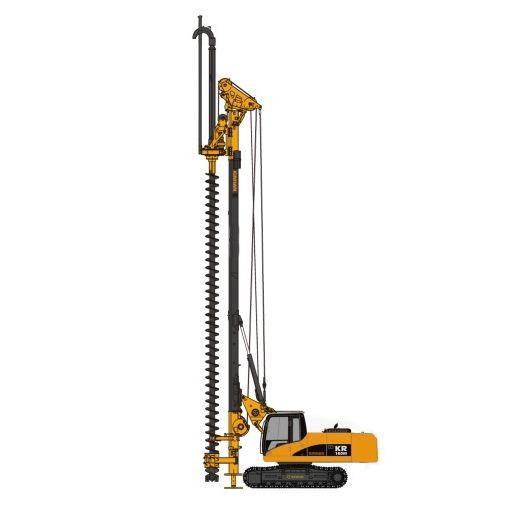

23.5m Depth 1200 Dia Hydraulic CFA Long Spiral Rotary Drilling Rig
CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. CFA piles continue the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil. This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc, The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.
Performance
1. The leading self-propelled hydraulic long spiral drilling rig, can change transport state into working state rapidly;
2. High-performance hydraulic system and control system, which is developed by VOSTOSUN and Tianjin University CNC Hydraulic Institute of technology, ensure the machine efficient construction and real-time monitor;
3. With concrete volume display system, can realize the precise construction and measurement;
4. The innovative depth measurement system has higher precision than ordinary rig;
5. All-hydraulic power head construction, the output torque is stable and smooth;
6. Power head can change torque according to the needs of construction, which ensures higher efficiency;
7. Mast automatically adjusts the vertical to enhance the accuracy of the hole;
8. The innovative design Wind-fire Wheels ensures work safer in nighttime;
9. The Humanized rear design can increase storage space effectively;
Technical parameters
| Technical parameters |
| | Euro Standards | U.S. Standards |
| Max drilling depth | 23.5m | 77 ft |
| Max drilling diameter | 1200mm | 47in |
| Engine model | CAT C-9 | CAT C-9 |
| Rated power | 261KW | 350HP |
| Max torque for CFA | 120kN.m | 88476lb-ft |
| Rotating speed | 6～27rpm | 6～27rpm |
| Max crowd force of winch | 280kN | 62944lbf |
| Max extraction force of winch | 280kN | 62944lbf |
| Stroke | 14500mm | 571in |
| Max pulling force of main winch (the first layer) | 240kN | 53952lbf |
| Max pulling speed of main winch | 63m/min | 207ft/min |
| Wire line of main winch | Φ32mm | Φ1.3in |
| Undercarriage | CAT 330D | CAT 330D |
| Track shoe width | 800mm | 32in |
| width of crawler | 3000-4300mm | 118-170in |
| Whole machine weight | 70T | 70T |
